Products >> Sliding doors >> 300kg automatic door operators

  • heavy automatic door operator 300kg*2
  • heavy automatic door operator 300kg*2
  • heavy automatic door operator 300kg*2
  • heavy automatic door operator 300kg*2
heavy automatic door operator 300kg*2 heavy automatic door operator 300kg*2 heavy automatic door operator 300kg*2 heavy automatic door operator 300kg*2

heavy automatic door operator 300kg*2


Functions and features:
1. Unique design, differnt from traditional ones.
2. Max length can be 6 meters and the passage width can be 2.95m, adapting most of the commercial entrnace.
3. 11w at leisure status, awake within 0.3s.
4. 33db, despite the heavy loading.
5. The sensors, locks, barriers, etc.. can be connected to the operator any time as the ports are at the end of the track. without having to open the cover.
6. Life span: more than 1 million cycles.

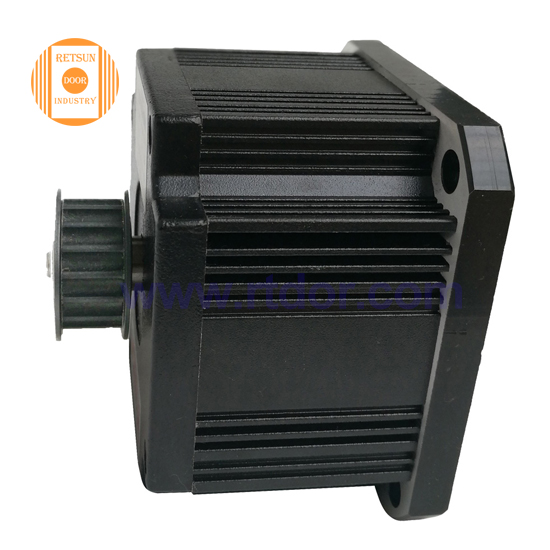

the motor

1.3 phase,AC 0--230V..

2. Low noise, less than 7db.

3. Long life-span, we provide a 3 year warrant over the single item.

4. Easy connection and mounting, with fast connection head and 4 screws.

5. Rotating speed: 0--180rpa

6. Speed has a digigal display over the speed( on
the controller .













the controller

1.PLC+Adapter, associated together.

2.Automatic overload protection design.

3.Parameters can be visably adjusted and clearly shown.

4.Automatic speed control.

5. Millitary-grade components, adapting AQL (acceptance quality level) MIL-STD-105E.














the trolleys

1.A3,5mm steel for the metal parts.

2.Nylon wheel, PA66,1million cycles under max loading status.

3.Each wheel has 2 bearings instead of one.
















Standard Components
